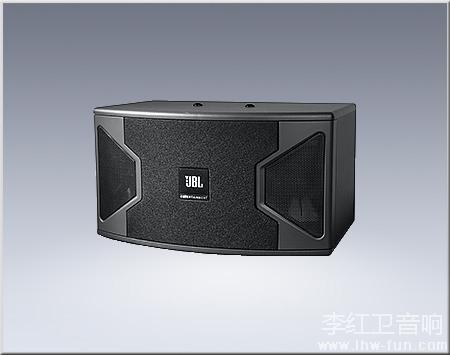

The KS308 utilizes an 8″ woofer and two 1″ silk dome tweeters. The 8″ woofer features a non-pressed
long fiber pulp cone and pure nitrile butadiene rubber surround providing necessary stiffness and high
reliability and capacity to withstand the tremendous accelerating force from the motor. An anodized al
uminium voice coil former provides extra cooling for greater longterm power handling. The two 1″ silk
dome tweeters provide warm, clear and crisp high frequency and wide, even coverage of listening area.
High-performance 8″ woofer features a sophisticated cone design with rubber surround for long-life, high
reliability, and unsurpassed low-frequency reproduction;
Dual 1″ silk dome neodymium tweeter;
Enclosure constructed of MDF (Medium Density Fiberboard) with vinyl laminated finish;
High-strength ABS (Acrylonitrile Butadiene Styrene) horn providing even and smooth frequency response;
Precision engineered crossover for optimal power response and performance in the critical mid-range region;
Built-in protection circuit engineered specifically to protect the tweeter without interrupting performance;
“Flat” and “Boost” switch offers two options in high frequency response;
For KTV sound reinforcement.
Specifications |
KS308音箱 |
System Type: |
8″, 2-way, bass-reflex |
Frequency Range (-10 dB): |
70 Hz - 20 KHz |
Frequency Response (±3 dB): |
78 Hz - 18 KH |
Sensitivity (1w/1m) : |
86 dB |
Nominal Impedance : |
8 Ohms |
Maximum SPL : |
110 dB (116 dB peak) |
Power Rating |
|
(Continuous/Program/Peak): |
150 W / 300 W / 600 W |
Coverage Pattern: |
120° x 100° (H x V) |
Dimensions (H x W x D) : |
235 mm x 435 mm x 295 mm 9.3 in x 17.1 in x 11.6 in |
Net Weight: |
8.1 Kg/PC (18 lbs/PC) |
LF Driver: |
1 x 8″ WF |
HF Driver : |
2 x 1″ silk dome tweeter |
Input Connectors: |
Binding post |
Enclosure Construction : |
Vinyl covered 12 mm MDF |
