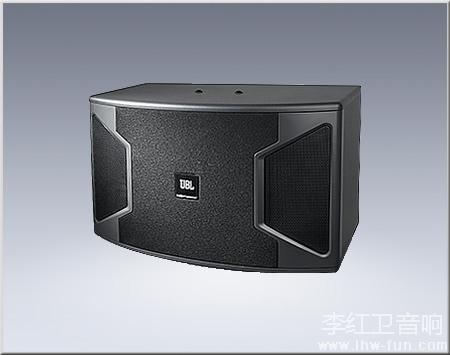

The KS312 utilizes a 12″ woofer and two 1″ silk dome tweeters. The 12″ woofer features a
nonpressed long fiber pulp cone and pure nitrile butadiene rubber surround providing necessary
stiffness and high reliability and capacity to withstand the tremendous accelerating force from the motor. An anodized aluminium voice coil former provides extra cooling for greater long-term power handling. The two 1″ silk dome tweeters provide warm, clear and crisp high frequency and wide, even coverage of listening area.
High-performance 12″ woofer features a sophisticated cone design with rubber surround
for long-life, high reliability, and unsurpassed low-frequency reproduction;
Dual 1″ silk dome neodymium tweeter;
Enclosure constructed of MDF (Medium Density Fiberboard) with vinyl laminated finish;
High-strength ABS (Acrylonitrile Butadiene Styrene) horn providing even and smooth frequency
response;
Precision engineered crossover for optimal power response and performance in the critical mid-range region;
Built-in protection circuit engineered specifically to protect the tweeter without interrupting
performance;
Specifications |
KS312音箱 |
System Type: |
12″, 2-way, bass-reflex |
Frequency Range (-10 dB): |
65 Hz - 20 KHz |
Frequency Response (±3 dB): |
76 Hz - 18 KHz |
Sensitivity (1w/1m) : |
90dB |
Nominal Impedance : |
8 Ohms |
Maximum SPL : |
115 dB (121 dB peak) |
Power Rating |
|
(Continuous/Program/Peak): |
350 W / 700 W / 1400 W |
Coverage Pattern: |
120° x 100° (H x V) |
Dimensions (H x W x D) : |
344 mm x 595 mm x 360 mm 13.5 in x 23.4 in x 14.2 in |
Net Weight: |
16.2 Kg/PC (35.7 lbs/PC) |
LF Driver: |
1 x 12″ WF |
HF Driver : |
2 x 1″ silk dome tweeter |
Input Connectors: |
Binding post |
